File and URL Submissions

Submitting Files for Analysis​

Files can be submitted to the appliance:

tip

The ReversingLabs browser extension is available on the Chrome Web Store. It enables you to query domains, URLs, IP addresses, and hashes from web pages and submit files for analysis.

Manual uploads​

An image showing the file submission dialog

Samples can be manually uploaded to Spectra Analyze from any page in the interface by clicking the Submit button in the header bar and selecting File Analysis. Alternatively, you can submit files programmatically using the Submissions API as part of an automated workflow.

In the File Analysis dialog, click Browse Files to upload files from your local system, or enter a direct File URL. Then click Submit to process the files using the current appliance configuration.

To customize the submission, use the link below the form to choose specific analysis services.

If you're using the RL Cloud Sandbox, you can also specify a custom filename, the target platform, locale, geolocation, toggle Internet Simulation on/off, and set an execution timeout (between 30 and 500 seconds, the default value is 200). and request an interactive analysis session.

A progress bar in the header indicates the upload status while files are uploading. Navigating away from the page or refreshing the browser tab during upload is not supported and will cancel the upload.

Advanced Analysis Options​

Uploaded samples will follow your current appliance settings, but you can make a one-time adjustment for each upload, such as sending the file to Threat Intelligence (Spectra Intelligence) for threat reputation info, or using one of the sandbox integrations.

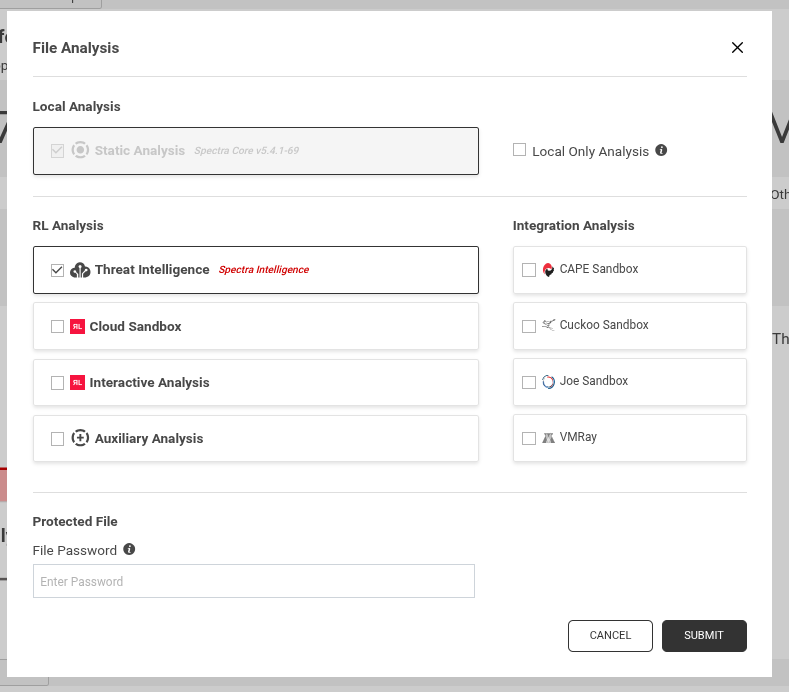

Additional options for file uploads

  • If Local Only Analysis is selected, the file is analyzed exclusively on the appliance. The sample is not sent to any configured integrations, sandboxes, or Spectra Intelligence services.

  • Protected File: Some security solutions opt to put suspicious and malicious files, such as email attachments, into password-protected archives before passing them on for further analysis, using the archive format as a secure means of transport. If you're submitting such a password-protected archive, you can also provide a one-time password here.

note

This feature expects the ZIP file to contain only one file and will, upon successful extraction, upload only the extracted file and discard the archive. Only CRC32 encrypted ZIP files are supported. AES encryption is not supported at this time.

This specific unpacking mechanism is triggered by providing a password. For general password-protected archive usage uploads (where multiple files can be extracted and processed), perform a regular upload with a preconfigured password list (Administration > Configuration > Password List).

File Processing​

When a file is submitted to the appliance, it is processed with Spectra Core. Depending on the appliance configuration, samples with supported file types can be automatically sent to dynamic analysis services after they are submitted to the appliance. The file becomes visible in the Local tab on the Search & Submissions page.

Detailed analysis results can be viewed in the Expanded Details section, or on the file's Sample Details page.

The duration of the analysis depends on file sizes and file types, as well as the number of files extracted during analysis. Extracted files are also analyzed separately.

After initial processing by Spectra Core, users can optionally submit it to Spectra Intelligence and/or supported dynamic analysis services, if configured on the appliance. Spectra Intelligence scanners that support archive unpacking and heuristic analysis automatically perform those steps during processing.

note

For CAPE and Joe Sandbox, previously analyzed files will not be automatically sent for analysis again if the Submit only distinct files option is configured. Administrators can configure this on the Administration ‣ Integrations page.

File Size Restrictions​

  • The maximum supported file size for upload on Spectra Analyze is 10 GB. This value can be configured in Administration > Configuration > General > File Size Limit.
  • Files larger than 400 MB cannot be submitted for dynamic analysis (individual dynamic analysis integrations have even lower limits).
  • YARA rulesets are not applied to extracted files larger than 700 MB.

New files cannot be submitted to Spectra Analyze if the disk space usage on the appliance exceeds the set value.

If this happens:

Pivoting from Spectra Detect​

If Spectra Analyze is connected to Spectra Detect (either to individual Workers, or a cluster managed by Spectra Detect Manager), it can pull files from a preconfigured S3 bucket or directly from Spectra Detect Manager. Both of these options must first be configured on Spectra Detect.

The pivot link is present in the dashboard of Spectra Detect Manager, as well as in the Worker JSON report under file_link. When you open the link, Spectra Analyze will pull the previously analyzed file from the preconfigured source and will reanalyze it.

Imported files will be tagged with the spectra_detect tag.

Submitting URLs for Analysis​

The URL analysis service provides comprehensive analysis of submitted URLs through advanced web intelligence gathering and threat detection capabilities. The service performs DOM analysis to detect malicious content, captures visual evidence, maps network infrastructure (IP addresses, DNS, SSL/TLS certificates, domain registration), and executes URLs in sandbox environments to observe runtime behavior and track redirection chains.

URLs can be manually uploaded to the Spectra Analyze from any page of the interface by clicking the Submit button on the header bar and selecting URL Analysis from the menu, or via the Submissions API as part of an automated workflow.

In the URL submission dialog that opens, enter the full URL of a website including the protocol (https://www.example.org), or a full link to a single file (http://www.example.org/documents/reports/year-report.pdf). Supported protocols are HTTP and HTTPS.

Important: Files are downloaded only from the submitted URL with no recursion (crawl depth = 1). For example, if you submit http://www.example.com/freshcontent, only that specific URL will be analyzed—http://www.example.com/freshcontent/newest will not be included.

The service downloads and analyzes up to 50 samples per analysis (each up to 100 MB), with files processed through the ReversingLabs threat detection pipeline.

Crawling Methods​

Crawling Methods​

Optionally, users can enable URL Crawling to download and analyze files from a submitted URL.

  • Spectra Intelligence: By default, URLs are crawled using the Spectra Intelligence crawling method. This requires Spectra Intelligence to be configured on the appliance.

    When using the Spectra Intelligence crawling method, users have the additional option of submitting the URL for dynamic analysis to the ReversingLabs Cloud Sandbox. In addition to automated dynamic analysis, users can choose to enable interactive analysis, which provides manual control over the browser session during execution.

  • Local: If enabled by the appliance administrator, users can also select the Local crawling method. This method doesn't require Spectra Intelligence to be configured, and disables all Spectra Intelligence features, such as dynamic and interactive analysis.

Privacy

For more information on these methods, refer to the Privacy of Submitted Files and URLs chapter.

Click OK to confirm URL submission, or Cancel to close the submission dialog. The submission cannot be confirmed if the URL is invalid.

The Search & Submissions page displays comprehensive analysis results for the submitted URL, including all downloaded files, network intelligence data, visual evidence, and behavioral analysis findings. If any of the analyzed components are malicious or suspicious, the overall verdict for the URL reflects the highest threat level detected.

The submission type indicator icon on the left side of the page helps distinguish between files downloaded to the appliance via a URL (the link icon) and files directly submitted to the appliance (the folder icon).

Analyzing Data from Submitted URLs

The analysis duration depends on multiple factors including the number of files downloaded (up to 50), their sizes and file types, DOM complexity, network infrastructure resolution, and dynamic execution requirements. Each downloaded file is also analyzed separately through the complete threat detection pipeline. The timeout for URL submissions is 45 minutes.

URL submissions undergo comprehensive analysis including static file analysis with the Spectra Core engine, network infrastructure mapping, DOM analysis, and visual documentation. Users can manually send components for additional analysis to Spectra Intelligence and/or configured dynamic analysis services using the Reanalyze option. This integration with Spectra Intelligence and dynamic analysis services must be configured by appliance administrators.

All files and websites downloaded to the appliance via the URL submission dialog are automatically assigned the URL Download User Tag. This tag is visible in the Expanded Details and on the Sample Details page for every file and website. Clicking the tag opens the Tags page filtered to display all files with the URL Download tag. Users can then sort the files and perform bulk actions, such as reanalyzing them or adding them to alert subscriptions.

URL Submission Restrictions​

The URL analysis service has the following limitations:

  • File Limits: Up to 50 files can be downloaded and analyzed per URL submission, with each individual file limited to 100 MB
  • Total Data Limit: The maximum allowed size of all data downloaded from submitted URLs can be configured by the appliance administrator. By default, it is limited to 200 MB. This value is configurable by appliance administrators in the Administration ‣ Configuration ‣ URL Analysis dialog. The maximum configurable value is 700 MB.
  • Crawl Depth: Analysis is limited to the submitted URL only (crawl depth = 1) with no recursive crawling of linked pages

In addition to these limits, submitting a URL using the Spectra Intelligence crawling method will also compare individual components of the submitted URL to the Maximum Fetch File Size value in Administration > Configuration > Spectra Intelligence. Any files going over this limit will be skipped. The maximum configurable value is 2000 MiB.

If the download request fails, the URL submission is marked as failed. Users can attempt to reanalyze the submission by selecting the Retry analysis option in the actions menu (☰). This option is available for individual submissions only (not for multiple submissions at once).

Privacy of Submitted Files and URLs​

note

Refer to the Privacy chapter for more information and best practices.

File Submissions​

All files submitted to the appliance are accessible to all users with accounts on that Spectra Analyze instance.

While each submission is associated with a particular user (the one who submitted the file or URL), actual files on the local appliance system are not owned by any of the users in the traditional sense of file ownership. Therefore, all users on the Spectra Analyze instance can download, reanalyze, subscribe/unsubscribe, add tags, and manually change classification for any file uploaded by another user.

URL Submissions​

When submitting URLs for analysis, be aware of the following privacy implications:

  • URL analysis can only access and analyze publicly reachable online resources
  • All submitted URLs and downloaded files are treated as public and accessible to all Spectra Intelligence users
  • URLs are automatically normalized during submission, which may remove or convert duplicate and empty elements

Crawling Methods​

Depending on which crawling method is selected, files obtained from the submitted URLs are treated differently.

  • The Spectra Intelligence crawling method (default) is more reliable when working in restricted network conditions and ensures fewer failed URL analyses. However, all downloaded files are treated as public, and will be visible and accessible to all Spectra Intelligence users. The prerequisite for this is a properly configured Spectra Intelligence account on the appliance.
  • The Local crawling method will treat the URL as any other locally submitted file. The contents of the URL are crawled and downloaded directly. This method can be used without a Spectra Intelligence account and must be enabled by the appliance administrator. If Spectra Intelligence is configured and is using a proxy, the same proxy will be used to crawl the URLs when using this method.

Appliance administrators can delete files submitted by other users. Regular users can only delete their own submissions.

Spectra Intelligence​

If the appliance is connected to Spectra Intelligence, all submissions can be:

  • Manually uploaded to be analyzed with AV engines. This is done with the Reanalyze option.
  • Automatically uploaded (Administration > Configuration > Spectra Intelligence > Automatic Upload to Spectra Intelligence). This is disabled by default.

Whether submitted files will be shared with other ReversingLabs customers depends on the role configured for the Spectra Intelligence account used by the appliance.

Spectra Intelligence accounts created to be used with Spectra Analyze appliances are always configured as private (non-shareable), meaning that other ReversingLabs customers may only be able to access analysis results for the files, but not retrieve their contents.

However, if those same files are uploaded to Spectra Intelligence as shareable from another source, they will cease to be treated as private. In that case, other ReversingLabs customers may be able to download the files, their metadata, and their analysis results through other ReversingLabs solutions (such as APIs and Feeds).

If Spectra Intelligence is not configured on Spectra Analyze, files are only preserved on the local appliance system and accessible only to users on that instance.

ReversingLabs Cloud Sandbox​

Whether submitted files, PCAP files, dropped files, and memory string dumps will be shared with other ReversingLabs customers depends on the role configured for the Spectra Intelligence account used to upload files.

If the account is configured to upload all files as not shareable (private), other ReversingLabs customers will only be able to access analysis results, but not retrieve the actual contents of uploaded files, dropped files, PCAP files or memory string dumps. This is the default setting for Spectra Intelligence accounts created to be used on Spectra Analyze appliances.

If the account is configured to upload all files as shareable (not private), other ReversingLabs customers will be able to access analysis results, but also download the uploaded files, dropped files, PCAP files, and memory string dumps generated during file execution.
