Spectra Analyze MISP Enrichment Module

Version: 1.0.0

Status: Production Ready

Last Updated: January 2026

Introduction​

The Spectra Analyze MISP Enrichment Module brings powerful threat intelligence to your MISP instance by enriching indicators of compromise (IOCs) with data from ReversingLabs Spectra Analyze. Security teams can now seamlessly correlate file hashes, domains, IP addresses, and URLs against ReversingLabs' comprehensive threat database directly within MISP.

What This Module Does​

When you enrich an IOC in MISP, this module:

  1. Extracts the indicator (hash, domain, IP, or URL)
  2. Queries the ReversingLabs API
  3. Transforms the response into MISP-compatible objects and attributes
  4. Creates enriched MISP objects with threat classification, risk scores, and related indicators
note

For best results, ensure the Spectra Analyze integration with Spectra Intelligence is configured. For more information, see Spectra Intelligence Configuration. This integration provides enrichment for IOCs which were not analyzed by the configured Spectra Analyze instance but which are available from Spectra Intelligence.

Key Features​

  • File Hash Enrichment - MD5, SHA-1, SHA-256 analysis results
  • Domain Enrichment - DNS records, threat classifications, associated IPs
  • IP Enrichment - Geolocation, associated domains, threat reputation
  • URL Enrichment - Domain extraction, content analysis, threat classification
  • Automatic Relationship Mapping - Connects file objects to domains, IPs, and reports
  • Enterprise Ready - Proxy support, custom SSL certificates, configurable timeouts
  • Declarative Mappings - JSON-based configuration for customization

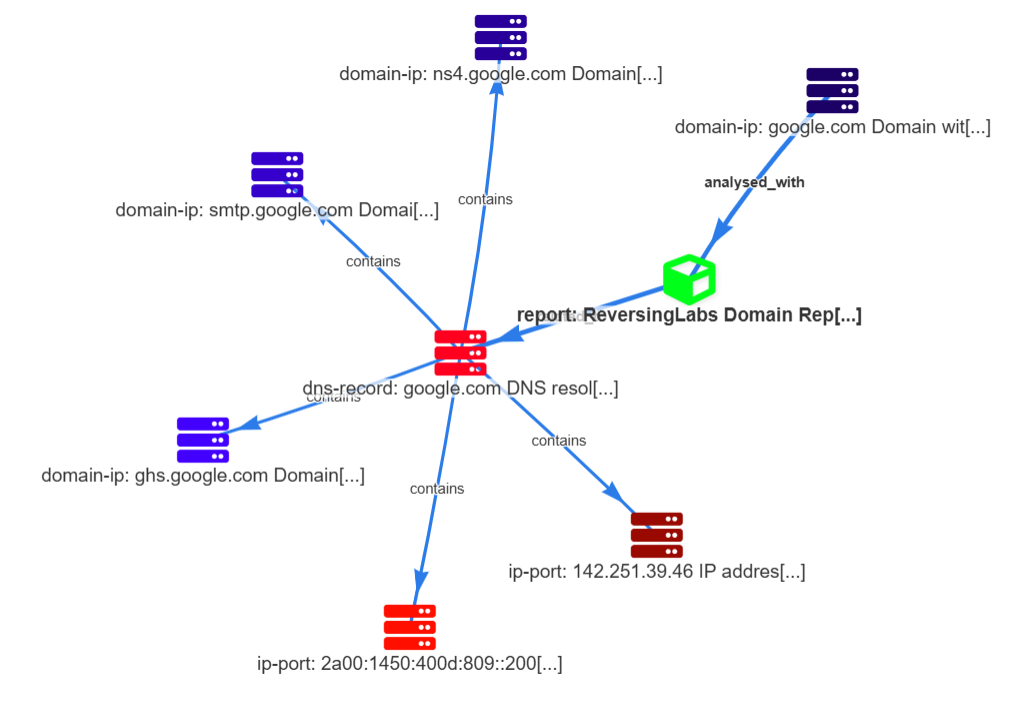

Snapshot: Object Graph

Snapshot: Tagging

How It Works: Data Flow​

When you enrich an indicator in MISP, here's what happens behind the scenes:

  1. MISP Event Enrichment on IOC attributes (file hash, domain, IP, or URL) via manual or automated workflow
  2. The Spectra Analyze module sends your indicator to the ReversingLabs API for analysis
  3. ReversingLabs returns threat intelligence data (classification, risk score, related indicators, etc.)
  4. The module transforms the response into MISP-compatible objects and relationships
  5. MISP displays the enriched data directly in your event with tags, attributes, and connected objects

All of this happens within seconds, giving your security team instant threat context without leaving MISP.

Data Flow Diagram​

Data Flow

Requirements​

MISP Instance​

  • MISP 2.4.150 or later
  • MISP modules service enabled
  • Read/Write access to MISP events

ReversingLabs Account​

  • Spectra Analyze (Standard User Role) and optional Spectra Intelligence
  • Spectra Analyze API token, see the following document for generating the required token.

Network​

  • Outbound HTTPS connectivity to ReversingLabs API endpoint
  • Optional: Proxy support for corporate environments

Supported IOC Types​

IOC TypeSupportedExamples
File Hash✓MD5, SHA-1, SHA-256
Domain✓example.com, malicious.net
IPv4 Address✓192.168.1.1, 8.8.8.8
IPv6 Address✓::1, 2001:4860:4860::8888
URL✓https://example.com/path, http://malicious.com

Installation & Deployment​

Linux (Native MISP Installation)​

  1. Copy the module to your MISP modules directory:
sudo cp reversinglabs_spectra_analyze.py /var/www/MISP/app/files/misp-modules/misp_modules/modules/expansion/
  1. Set proper permissions:
sudo chown www-data:www-data /var/www/MISP/app/files/misp-modules/misp_modules/modules/expansion/reversinglabs_spectra_analyze.py
sudo chmod 644 /var/www/MISP/app/files/misp-modules/misp_modules/modules/expansion/reversinglabs_spectra_analyze.py
  1. Restart services:
sudo systemctl restart apache2
# or for php-fpm
sudo systemctl restart php8.1-fpm

Docker (MISP-Docker)​

  1. Find your container name:
docker ps --format '{{.Names}}' | grep misp
  1. Copy the module into the container:
docker cp reversinglabs_spectra_analyze.py <container_name>:/var/www/MISP/app/files/misp-modules/misp_modules/modules/expansion/
  1. Set permissions:
docker exec <container_name> chown www-data:www-data /var/www/MISP/app/files/misp-modules/misp_modules/modules/expansion/reversinglabs_spectra_analyze.py
  1. Restart MISP modules service:
docker exec <container_name> supervisorctl restart misp-modules

Verify Installation​

  1. Go to Administration → List Modules in MISP
  2. Search for reversinglabs_spectra_analyze
  3. Confirm the module appears in the list
  4. Check the module details for any import errors in logs

Configuration​

MISP Plugin Settings​

After installation, configure the module in the MISP web interface:

  1. Navigate to Administration → Server Settings & Maintenance
  2. Click the Plugins tab
  3. Filter for reversinglabs_spectra_analyze
  4. Configure the following settings:
SettingDescriptionExampleRequired
Plugin.Enrichment_reversinglabs_spectra_analyze_enabledEnable/disable the moduletrueYes
Plugin.Enrichment_reversinglabs_spectra_analyze_api_urlReversingLabs API endpointhttps://api.reversinglabs.comYes
Plugin.Enrichment_reversinglabs_spectra_analyze_api_tokenYour API authentication tokenyour-api-token-hereYes
Plugin.Enrichment_reversinglabs_spectra_analyze_verify_sslVerify SSL certificatestrueNo
Plugin.Enrichment_reversinglabs_spectra_analyze_timeoutAPI request timeout (seconds)30No

To Edit Settings​

  1. Double-click the setting name (left column) to open the input field
  2. Enter the new value
  3. Press Enter or click outside the field to save

Enterprise Configuration​

Proxy Support​

If your MISP instance sits behind a corporate proxy:

Add to local configuration or environment variables:
MISP_MODULE_RL_PROXY_HOST=proxy.company.com
MISP_MODULE_RL_PROXY_PORT=8080
MISP_MODULE_RL_PROXY_USERNAME=domain\username
MISP_MODULE_RL_PROXY_PASSWORD=password

SSL Certificate Verification​

For self-signed certificates:

  1. Set verify_ssl to false (not recommended for production)
  2. OR provide the certificate path via ca_bundle setting
note

Some corporate environments with certificate inspection may require disabling SSL verification or providing the corporate root CA certificate.

Docker Environment Variables​

For MISP-Docker deployments, add to your docker-compose.yml:

services:
  misp:
    environment:
      - MISP_MODULE_RL_API_URL=https://your-endpoint.com
      - MISP_MODULE_RL_API_TOKEN=your-api-token-here
      - MISP_MODULE_RL_VERIFY_SSL=true

API Coverage & Enrichment Examples​

File Hash Enrichment​

When you enrich a file hash (MD5, SHA-1, or SHA-256), the module returns:

  • Classification - MALICIOUS, SUSPICIOUS, GOODWARE, or UNKNOWN
  • Risk Score - 0-10 severity rating
  • File Metadata - Type, size, creation date
  • Threat Names - Detected malware family names
  • Related Indicators - Associated domains, IPs, extracted files
  • Analysis Report Link - Direct link to ReversingLabs portal

Example enrichment result:

MISP Object Created: file
├── Attribute: md5 = "5d41402abc4b2a76b9719d911017c592"
├── Attribute: sha256 = "2c26b46911685ce267f59eabc5b40f265256e8a..."
├── Attribute: filename = "malware.exe"
├── Tag: rl:classification = "MALICIOUS"
├── Tag: rl:risk-score = "8"
├── Relationship: analysed-with → report object
└── Relationship: contains → domain-ip objects

Domain Enrichment​

Domain enrichment provides:

  • DNS Records - A, AAAA, MX, NS, CNAME records
  • Associated IPs - Current and historical IP resolutions
  • Threat Status - Classification and risk rating
  • Whois Information - Registrant details, registration date

Example:

Domain: malicious.net
├── A Records: 93.184.216.34, 93.184.216.35
├── MX Records: mail.malicious.net
├── Associated Threats: Trojan.Generic, Adware.Minor
└── Tags: rl:classification=MALICIOUS, rl:first-seen=2024-01-15

IP Address Enrichment​

IP enrichment reveals:

  • Geolocation - Country, region, coordinates
  • Reverse DNS - Associated domains
  • Historical Data - Previous domain resolutions
  • Threat Reputation - Known malicious activity

URL Enrichment​

URL enrichment extracts:

  • Domain & Host - Parsed from the URL
  • Threat Classification - URL-level threat status
  • Content Analysis - Detected threats in page content
  • Redirects - Chained URL relationships

Mapping DSL Primer​

The module uses a declarative JSON mapping engine to transform ReversingLabs API responses into MISP objects. Most users don't need to modify mappings, but power users can customize enrichment behavior.

Core Concepts​

Handlers are functions that extract and transform data:

HandlerPurposeExample
#refExtract value from API response using path notation{{#ref sample_summary.sha256}}
#summaryGenerate human-readable summary for the IOC type{{#summary}}
#build_linkCreate link to ReversingLabs analysis portal{{#build_link file}}
#foreachIterate over array and create tags/attributes{{#foreach top_threats}}...{{/foreach}}
#iterate_dnsCreate MISP objects from DNS records{{#iterate_dns last_dns_records A,AAAA}}

Path References​

The #ref handler extracts values using dot notation:

{{#ref sample_summary.sha256}}          # Access nested field
{{#ref top_threats[0].threat_name}}     # Array element access
{{#ref classification_reason}}          # Root-level field
{{#ref data_source | 'NOT_FOUND'}}      # Fallback to literal value

Iteration Example​

Create multiple tags from threat list:

{
  "rl:threat[]": "{{#foreach top_threats}}{{#ref threat_name}}{{/foreach}}"
}

Results in multiple tags:

rl:threat = "Trojan.Generic"
rl:threat = "Ransomware.Lock"
rl:threat = "Adware.Minor"

Conditional Logic​

Use #if directives for conditional enrichment:

{
  "comment": "{{#if classification}}{{#ref classification}}{{#else}}Unknown{{/if}}"
}

Tags and Metadata​

Tags are created with namespace prefixes:

{
  "rl:classification": "{{#ref sample_summary.classification}}",
  "rl:risk_score": "{{#ref (int) sample_summary.risk_score}}"
}

Testing & Validation​

Quick Test​

  1. Navigate to any MISP event containing a file hash, domain, IP, or URL
  2. Right-click the attribute and select Enrich
  3. Choose reversinglabs_spectra_analyze from the module list
  4. Verify results appear in the event

Expected Output​

Successful enrichment creates MISP objects with:

  • Standard MISP object structure
  • ReversingLabs threat intelligence tags
  • Relationship links between related objects
  • Direct links to ReversingLabs analysis portal

Troubleshooting​

Module Not Listed in MISP​

Symptom: Module does not appear in "Enrich" menu or List Modules page

Solutions:

  1. Verify file location: /var/www/MISP/app/files/misp-modules/misp_modules/modules/expansion/reversinglabs_spectra_analyze.py
  2. Check file permissions: ls -l reversinglabs_spectra_analyze.py should show www-data ownership
  3. Restart MISP modules: sudo systemctl restart misp-modules (Linux) or docker exec <container> supervisorctl restart misp-modules (Docker)
  4. Check logs: tail -f /var/www/MISP/app/tmp/logs/error.log for import errors

"Connection Refused" Error​

Symptom: Error when attempting enrichment: "Connection refused" or "Unable to connect to API"

Cause: Wrong API URL or network connectivity issue

Solutions:

  1. Verify API URL in Plugin settings: Should match your ReversingLabs endpoint
  2. Test connectivity from MISP server: curl -I https://your-api-endpoint.com
  3. Check if proxy is needed: If behind corporate proxy, configure proxy_host and proxy_port
  4. Verify firewall rules allow outbound HTTPS on port 443

"401 Unauthorized" Error​

Symptom: "Unauthorized" or "Invalid API token" error

Cause: Invalid or expired API token

Solutions:

  1. Regenerate API token in ReversingLabs portal
  2. Update the token in MISP Plugin settings
  3. Verify no extra spaces or characters in token (copy-paste errors)

SSL Certificate Errors​

Symptom: "SSL certificate verify failed" or "Certificate validation failed"

Cause: Self-signed cert, expired cert, or corporate proxy with certificate inspection

Solutions:

  1. Set verify_ssl to false (not recommended)
  2. Provide corporate CA certificate bundle via environment variable or config
  3. Contact your IT team for certificate chain

Empty Results from Known Malicious IOCs​

Symptom: Enrichment runs successfully but returns no threat data

Causes:

  1. IOC not in ReversingLabs database (not yet analyzed)
  2. IOC is legitimate or clean (classification: GOODWARE)
  3. API quota exhausted

Solutions:

  1. Try a known malicious hash for testing (for example, from malware samples)
  2. Check API quota status in ReversingLabs portal
  3. Review logs for throttling or rate limit errors

Slow Enrichment or Timeouts​

Symptom: Enrichment takes >30 seconds or times out

Solutions:

  1. Increase timeout in settings: Plugin.Enrichment_reversinglabs_spectra_analyze_timeout (default 30 seconds)
  2. Check network latency: ping -c 1 your-api-endpoint.com
  3. Check ReversingLabs API status page for service issues
